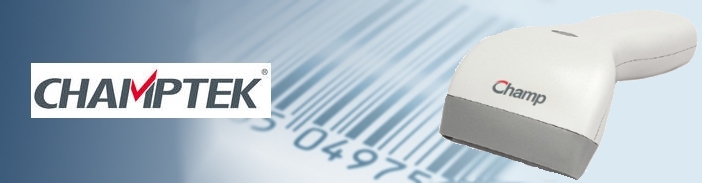

Streckkodsläsare SD 313

CHAMPTEC SD 313

The SD-313 is an economic handheld CCD scanner which preserved the characteristics of previous product line with high performance and most cost effective solution.
Aside from the primary of excellence mechanical design, it has contact reading distance, 80 mm reading window, 100 scans / second

Egenskaper:

Keyboard, RS232, USB and Wand Emulation
Elegant design
Economic handheld CCD Scanner
Cost effective solution

Produktspecifikation:

Housing material: ABS & Rubber
Weight: Approx. 138 gr (w/o cable)
Reading Indicator: Beeper and LED
Voltage: DC + 5 V ± 5%
Power Consumption: 130 mA
Interfaces: RS232 / USB / KBW
Light source: Visible red light 632 nm LED
Cable: Straight 5 ft.
Connector: RJ45 phone jack connector
Depth of field: 50 mm @ 20mil / 0.5 mm, PCS90%
Scan Rate: 100 scans / sec
Resolution: 4mil / 0.1 mm @ PCS90%
Operating Temperature: 0°C - 50°C
Relative Humidity: 20% to 95% (non-condensing)
Drop: 40 inch (100cm) drop on concrete surface
Ambient Light: 5000 Lux Max
