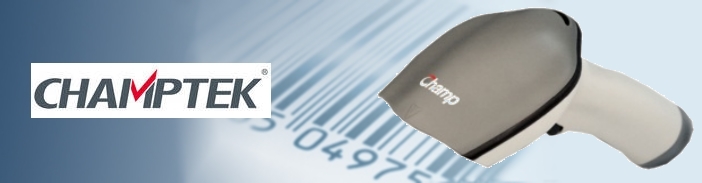

Streckkodsläsare SG 303
CHAMPTEC SG 303
SG 303 is a high performance gun-type CCD scanner implement with an advantage
feature allowed end-user to operate it easily under sunlight.
This scanner supports long reading range, high scanning speed, quick-release cable design
and integrated with the unique software configuration
Egenskaper:
Combo ( Keyboard, RS232 and USB)
High Performance gun-type CCD scanner
Elegant design
Ergonomic concept
Operating under sunlight
GS1 DataBar (RSS code)
Produktspecifikation:
Housing material: ABS & Rubber
Weight: Approx. 130 gr (w/o cable)
Reading Indicator: Beeper and LED
Voltage: DC + 5 V ± 5%
Power Consumption: 180 mA
Interfaces: RS232 / USB / KBW
Light source: Visible red light 635 nm LED
Cable Straight: 5 ft.
Connector: RJ45 phone jack connector
Depth of field: 260 mm @ 20mil / 0.5 mm, PCS90%
Scan Rate: 300 scans / sec
Resolution 4mil / 0.1 mm @ PCS90%
Operating Temperature: 0°C - 50°C
Storage Temperature: -20°C - 70°C
Relative Humidity: 20% to 95% (non-condensing)
Drop: 40 inch (100cm)
drop on concrete surface
Ambient Light: 100.000 Lux Max
